| Material： | Carbon Steel - 110 |
| SUS303 - 500 | |
| SUS316L - 600 | |
| BRASS - 800 |
tTYPE 302
| Part No. | Metric | Length |
External Thread |
Referent Drilling Diameter |
Minimum |
||
| Plastics |
Aluminum Alloy |
Casting Iron |
|||||
| TMC3020020... | M2-0.4 | 6 | M4.5-0.5 | 4.0-4.1 | 4.1-4.2 | 4.2-4.3 | 8 |
| TMC3020025... | M2.5-0.45 | 6 | M4.5-0.5 | 4.0-4.1 | 4.1-4.2 | 4.2-4.3 | 8 |
| TMC3020030... | M3-0.5 | 6 | M5-0.5 | 4.5-4.6 | 4.6-4.7 | 4.7-4.8 | 8 |
| TMC3020035... | M3.5-0.6 | 8 | M6-0.75 | 5.3-5.4 | 5.5-5.6 | 5.6-5.7 | 10 |
| TMC3020040... | M4-0.7 | 8 | M6.5-0.75 | 5.8-5.9 | 6.0-6.1 | 6.1-6.2 | 10 |
| TMC3020050... | M5-0.8 | 10 | M8-1.0 | 7.1-7.2 | 7.3-7.5 | 7.5-7.6 | 13 |
| TMC302006a... | M6a-1.0 | 12 | M9-1.0 | 8.1-8.2 | 8.3-8.5 | 8.5-8.6 | 15 |
| TMC3020060... | M6-1.0 | 14 | M10-1.5 | 9.0-9.2 | 9.2-9.3 | 9.3-9.4 | 17 |
| TMC3020080... | M8-1.25 | 15 | M12-1.5 | 10.6-10.8 | 11-11.2 | 11.2-11.4 | 18 |
| TMC3020100... | M10-1.5 | 18 | M14-1.5 | 12.6-12.8 | 13.0-13.3 | 13.2-13.4 | 22 |
| TMC3020120... | M12-1.75 | 22 | M16-1.5 | 14.6-14.8 | 15.0-15.3 | 15.2-15.4 | 26 |
| TMC3020140... | M14-2.0 | 24 | M18-1.5 | 16.6-16.8 | 17.0-17.3 | 17.2-17.5 | 28 |
| TMC3020160... | M16-2.0 | 22 | M20-1.5 | 18.6-18.8 | 19.0-19.3 | 19.2-19.5 | 27 |
| TMC3020180... | M18-2.5 | 24 | M22-1.5 | 20.6-20.8 | 21.0-21.3 | 21.2-21.5 | 29 |
| TMC3020200... | M20-2.5 | 27 | M26-1.5 | 24.6-24.8 | 25.0-25.3 | 25.2-25.2 | 32 |
| Part No. | UNC | Length |
External Thread |
Referent Drilling Diameter |
Minimum Drilling Depth |
||
| Plastics |
Aluminum Alloy |
Casting Iron |
|||||
| TUC30200256... | U#2-56 | 6 | M4.5-0.5 | 4.0-4.1 | 4.1-4.2 | 4.2-4.3 | 8 |
| TUC30200440... | U#4-40 | 6 | M5-0.5 | 4.5-4.6 | 4.6-4.7 | 4.7-4.8 | 8 |
| TUC30200632... | U#6-32 | 8 | M6-0.75 | 5.3-5.4 | 5.5-5.6 | 5.6-5.7 | 10 |
| TUC30200832... | U#8-32 | 8 | M6.5-0.75 | 5.8-5.9 | 6.0-6.1 | 6.1-6.2 | 10 |
| TUC30201024... | U#10-24 | 10 | M8-1.0 | 7.1-7.2 | 7.3-7.5 | 7.5-7.6 | 13 |
| TUC30201420... | U1/4-20 | 14 | M10-1.5 | 9.0-9.2 | 9.2-9.3 | 9.3-9.4 | 17 |
| TUC30251618... | U5/16-18 | 15 | M12-1.5 | 10.6-10.8 | 11-11.2 | 11.2-11.4 | 18 |
| TUC30203816... | U3/8-16 | 18 | M14-1.5 | 12.6-12.8 | 13.0-13.3 | 13.2-13.4 | 22 |
| TUC30207614... | U7/6-14 | 16 | M16-1.5 | 14.6-14.8 | 15.0-15.3 | 15.2-15.4 | 26 |
| TUC30201213... | U1/2-13 | 24 | M18-1.5 | 16.6-16.8 | 17.0-17.3 | 17.2-17.5 | 28 |
| TUC30205811... | U5/8-11 | 22 | M20-1.5 | 18.6-18.8 | 19.0-19.3 | 19.2-19.5 | 27 |
tTYPE 303
|
Part No. |
Metric |
Length |
External |
Referent Drilling Diameter |
Minimum |
|
TMC3030030... |
M3-0.5 |
6 |
M4.5-0.5 |
4.2 - 4.3 |
8 |
|
TMC3030040... |
M4-0.7 |
6 |
M6-0.7 |
5.6 - 5.7 |
8 |
|
TMC3030050... |
M5-0.8 |
8 |
M7-0.8 |
6.6 - 6.7 |
10 |
|
TMC3030060... |
M6-1.0 |
10 |
M8-1.0 |
7.5 - 7.6 |
13 |
|
TMC3030080... |
M8-1.25 |
12 |
M10-1.25 |
9.2 - 9.4 |
15 |
|
TMC3030100... |
M10-1.5 |
15 |
M12-1.5 |
11.2 - 11.4 |
18 |
| Part No. | Metric |
307 Length |
308 Length |
External Thread |
Referent Drilling Diameter |
Minimum Drilling Depth |
||
|
Aluminum Alloy |
Casting Iron |
307 | 308 | |||||
|
TMC3070030...TMC3080030... |
M3-0.5 | 4 | 6 | M5-0.6 | 4.6-4.7 | 4.7-4.8 | 6 | 8 |
|
TMC3070040.. TMC3080040... |
M4-0.7 | 6 | 8 | M6.5-0.8 | 6.0-6.1 | 6.1-6.2 | 8 | 10 |
|
TMC3070050...TMC3080050... |
M5-0.8 | 7 | 10 | M8-1.0 | 7.4-7.5 | 7.6-7.7 | 9 | 13 |
|
TMC3070060...TMC3080060... |
M6-1.0 | 8 | 12 | M10-1.5 | 9.3-9.4 | 9.5-9.6 | 10 | 15 |
|
TMC3070080...TMC3080080... |
M8-1.25 | 9 | 14 | M12-1.5 | 11.1-11.3 | 11.3-11.5 | 11 | 17 |
|
TMC3070100...TMC3080100... |
M10-1.5 | 10 | 18 | M14-1.5 | 13.1-13.3 | 13.3-13.5 | 13 | 22 |
|
TMC3070120...TMC3080120... |
M12-1.75 | 12 | 22 | M16-1.75 | 15.0-16.2 | 15.3-15.5 | 15 | 26 |
|
TMC3070140..TMC3080140... |
M14-2.0 | 14 | 24 | M18-2.0 | 17.0-17.2 | 17.3-17.5 | 17 | 28 |
|
TMC3070160...TMC3080160... |
M16-2.0 | 14 | 24 | M20-2.0 | 19.0-19.2 | 19.3-19.5 | 17 | 28 |

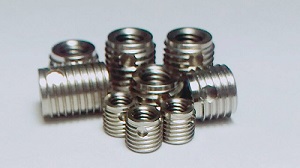

TYPE 337 / 338
| Part No. | Metric |
337 Length |
338 Length |
External Thread |
Referent Drilling Diameter |
Minimum Drilling Depth |
||
|
Aluminum Alloy |
Casting Iron |
337 | 338 | |||||
|
TMC3370030... |
M3-0.5 | 4 | 6 | M5-0.6 | 4.6-4.7 | 4.7-4.8 | 6 | 8 |
|
TMC3370040.. |
M4-0.7 | 6 | 8 | M6.5-0.8 | 6.0-6.1 | 6.1-6.2 | 8 | 10 |
|
TMC3370050... |
M5-0.8 | 7 | 10 | M8-1.0 | 7.4-7.5 | 7.6-7.7 | 9 | 13 |
|
TMC3370060... |
M6-1.0 | 8 | 12 | M10-1.5 | 9.3-9.4 | 9.5-9.6 | 10 | 15 |
|
TMC3370080... |
M8-1.25 | 9 | 14 | M12-1.5 | 11.1-11.3 | 11.3-11.5 | 11 | 17 |
|
TMC3370100... |
M10-1.5 | 10 | 18 | M14-1.5 | 13.1-13.3 | 13.3-13.5 | 13 | 22 |
|
TMC3370120... |
M12-1.75 | 12 | 22 | M16-1.75 | 15.0-16.2 | 15.3-15.5 | 15 | 26 |
|
TMC3370140.. |
M14-2.0 | 14 | 24 | M18-2.0 | 17.0-17.2 | 17.3-17.5 | 17 | 28 |
|
TMC3370160... |
M16-2.0 | 14 | 24 | M20-2.0 | 19.0-19.2 | 19.3-19.5 | 17 | 28 |
Above all are systemic dimensions,
non-systemic dimensions are also available under request.
